Autonics PMC-2HSP motion controllers – fast interpolation and multi-axis control

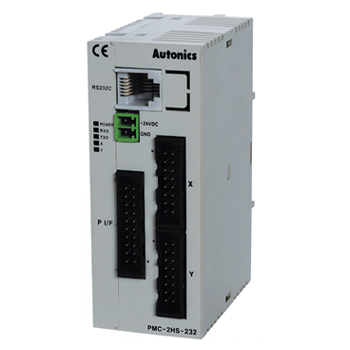

The PMC-2HSP series are advanced, dual-channel motion controllers designed for precise control of stepper motors using linear and circular interpolation. Thanks to their compact design (35.5 × 90 × 64 mm) and DIN rail mounting, the devices can be easily integrated into control cabinets for automation systems. The controllers support various operating modes, providing flexibility in the design of industrial applications.

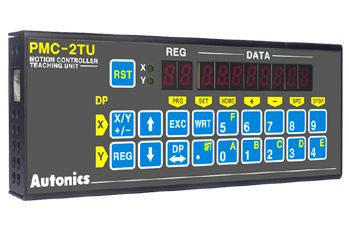

The use of the Modbus RTU protocol and the RS485 interface enables control of up to 16 units and 32 axes, making this series the ideal choice for complex multi-axis systems. Programming is carried out using dedicated tools and provides storage for up to 800 program steps, enabling the creation of more complex motion sequences.

Key features of the PMC-2HSP series:

• Independent, dual-channel control with speeds up to 4 Mpps.

• Support for linear and circular interpolation (2D).

• 4 operating modes: pulse, continuous, index, programmable.

• RS485 (Modbus RTU) communication – control of up to 32 axes.

• Support for multiple interfaces: USB, RS232C, RS485, parallel I/O.

• Support for up to 200 steps in 17 operating programmes.

• Programme memory with a capacity of up to 800 steps.

• Motion profile selection: symmetrical/asymmetrical trapezoidal or S-shaped.

• DIN rail mounting, compact and industrial housing.

PMC-2HSP are controllers designed for flexible motion control, enabling the creation of efficient and reliable applications in areas such as robotics, CNC machines, laboratory automation, pick-and-place systems and industrial dosing systems.

Available from ELTRON – authorised distributor of the Autonics brand.
